Description

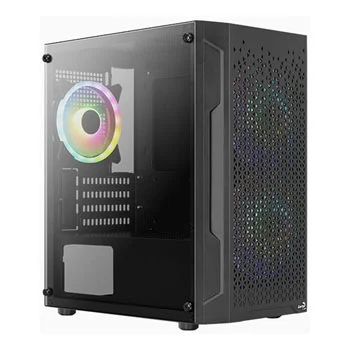

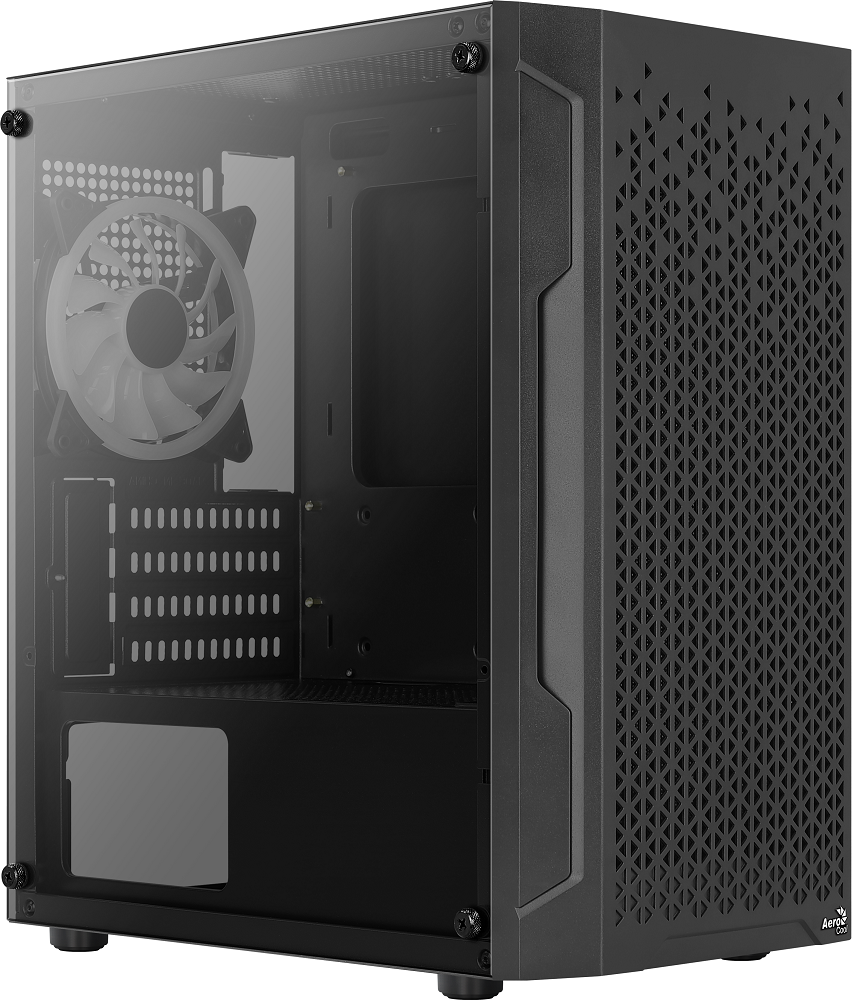

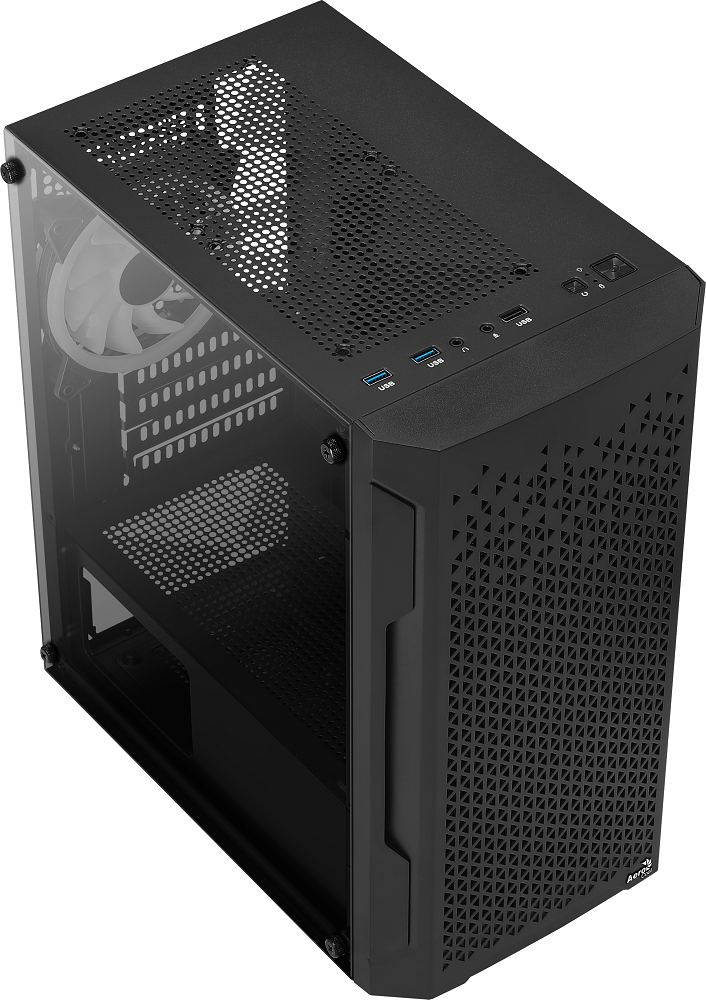

High-performance mini tower case with a full tempered glass side panel to showcase the inside of your rig. Designed with ventilation in mind, this case delivers superior air flow while allowing for viewing of your front LED fans. Supports liquid cooling in the front and rear of the case for maximum efficiency cooling.
AeroCool Trinity at a Glance
- Front panel with air vents delivers superior air flow and ventilation while allowing for viewing of your front LED fans
- Comes equipped with a full tempered side panel to showcase the inside of your rig
- Fan mounts on the PSU shroud support up to two 12cm fans for improved VGA cooling
- Supports liquid cooling in the front and rear of the case
- Supports air cooling in the front, top, and rear of the case
- Dual chamber design for improved ventilation
AeroCool Trinity Specification
| Case Type | Mini Tower |
|---|---|
| Color | Black |
| Body Material | SPCC |
| Front Panel Material | ABS |
| Steel Thickness | 0.5mm |
| Motherboards | Micro ATX/mini-ITX |
| Case Dimensions (Internal) | 200 x 375 x 300mm (W x H x D) |
| Case Dimensions (Overall) | 206.5 x 385 x 353.4mm (W x H x D) |
| 3.5” Drive Bays | 2 Max. (2 x 3.5”/2.5″) |
| 2.5” Drive Bays | 3 Max. (1 x 2.5” and 2 x 2.5”/3.5”) |
| Expansion Slots | 4 |
| GPU Clearance | Supports GPU up to 297mm (without front radiator) |
| CPU Cooler Clearance | Supports CPU cooler up to 158mm |
| Air Cooling | Front: 120mm x 2 or 140mm x 2 (Max.) Top: 120mm x 2 (Max.) Rear: 120mm x 1 (Max.) PSU Shroud: 120mm x 2 (Max.) |
| Liquid Cooling | Front: 120/240mm Radiator (Optional) (for 240mm, supports max thickness of 28mm) Rear: 120mm Radiator (Optional) |
| I/O Ports | USB3.0 x 2 | USB2.0 x 1 | HD Audio & Mic. |
| Internal Cable Management Depth | 20.5mm |
| Power Supply | ATX PSU (Including cables, up to 159mm) (Optional) |
| Drive Bays | |
| 2.5 / 3.5 inch internal drive bay (combined) | 2 |
| 3.5 inch internal drive bay | 2 |
| 2.5 inch internal drive bay | 3 |
| Case | |
| Case Type | Mini Case |
| Dimensions | |
| Length / Depth | 353.4 mm |
| Width | 206.5 mm |
| Height | 385 mm |
| Internal Dimensions | |
| Max. CPU Cooler Height | 158 mm |
| Max. GPU Length | 297 mm |
| Max. PSU Length / Depth | 159 mm |
| Materials | |
| Materials | ABS, Tempered Glass, SPCC (steel) |
| Motherboard Support | |
| Max. Motherboard Format | Micro-ATX |
| Compatible Motherboard Formats | Micro-ATX, Mini-ITX |
| Colour | |
| Primary Colour | Black |
| Fan Main Colour (Frame) | Black |
| Fan Main Colour (Rotor) | White |
| Expansion Slots | |
| Expansion slots / PCI slots | 4 |
| Lighting | |
| Lighting / RGB | No |
| Power Supply | |
| PSU included | No |
| PSU Format | ATX |
| Power Supply Position | rear bottom |
| Radiator Support | |
| Max. Radiator Compatibility | 1x Single (120 mm), 1x Dual (240 mm) |
| Case Features | |
| I/O position | Front |
| Side panel | closed |
| Cable Management | Yes |
| External Ports | |
| USB 3.0 (external) Type A | 2 |
| USB 2.0 (external) Type A | 1 |
| Audio outputs & inputs | 1x output + 1x input (3.5 mm jack, 3-pin, TRS) |
| Fan Support | |
| 120 mm fans | 7 |
| 140 mm fans | 2 |
