Description

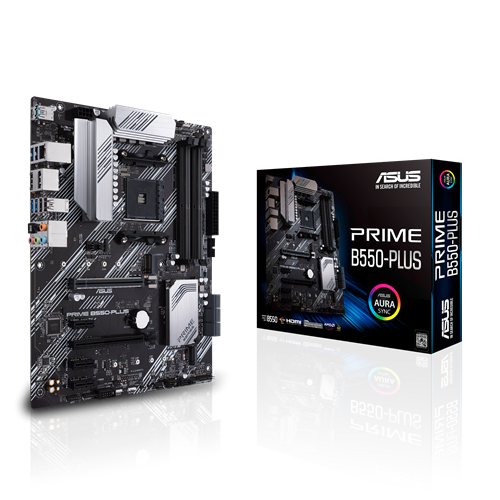

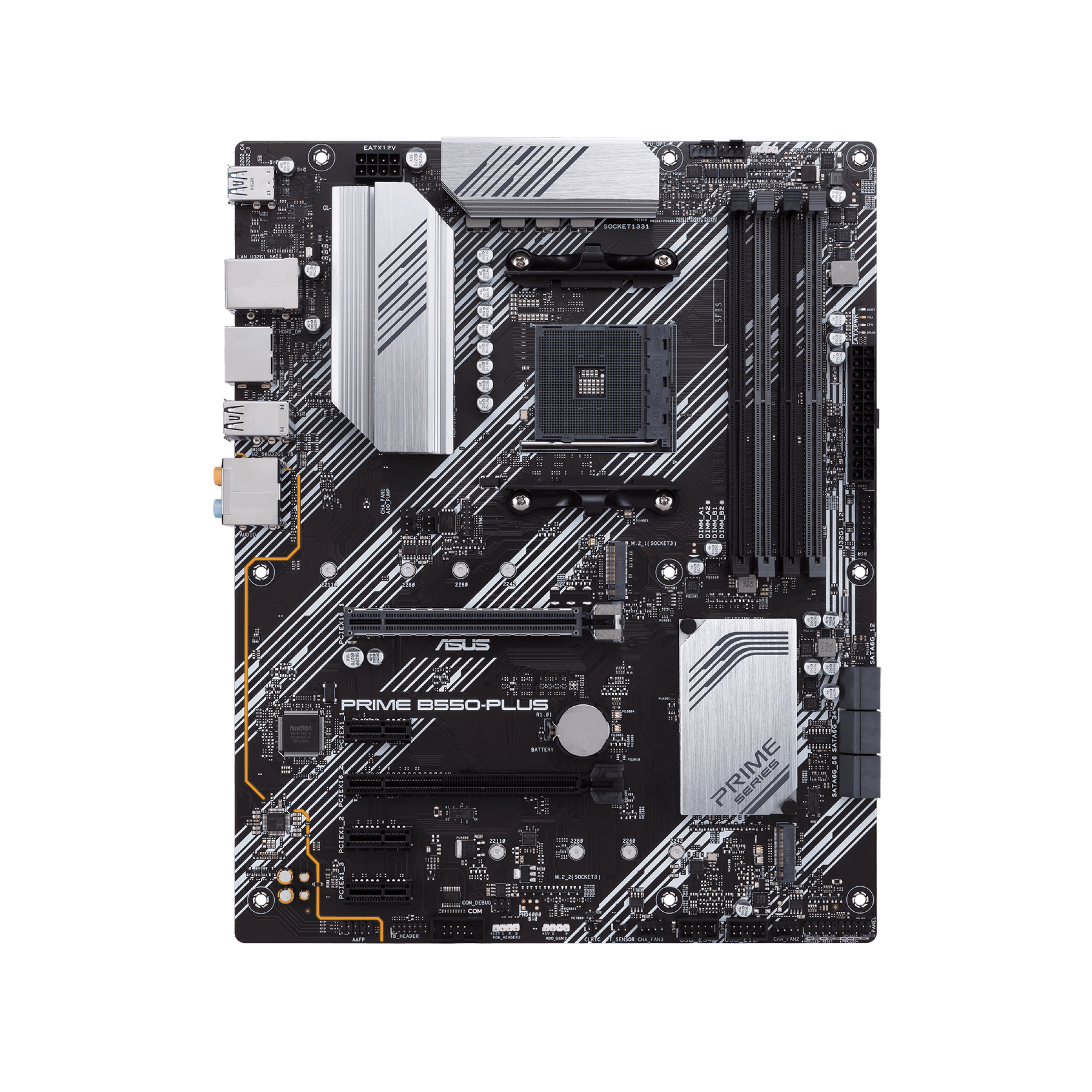

AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB headers support.
Specification:
| CPU | AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G |
| Chipset | AMD B550 |
| Memory | 4 x DIMM, Max. 128GB, 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.) 3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory |
| Onboard Graphics Outputs | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) |
| PCI Slots | 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 |
| Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD B550 Chipset: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| Networking | Realtek® GbE LAN chip (1000 Mbit/100 Mbit) |
| Audio | Realtek® ALC887 codec High Definition Audio 7.1-channel |
| Connectivity | Rear USB Port (Total 6) 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) Front USB Port (Total 6) 2 x USB 3.2 Gen 1 port(s) (2 x Type-A) 4 x USB 2.0 port(s) (4 x Type-A) |
| Internal Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x SPI TPM header 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
| Form Factor | ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Warranty | Three Year Manufacturer Warranty |
