Description
Specification:
| CPU | Supports AMD Ryzen Threadripper PRO 7000 and AMD Ryzen Threadripper 7000 Series Processors |
| Chipset | AMD TRX50 |
| Memory | 4 x DIMM, Max. 1TB, DDR5 4800MHz upto 7800MHz (OC) Quad Channel DDR5 Memory Technology Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) |
| PCI Slots | CPU: – 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2) – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3) |
| Storage | Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports CPU: – 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) – 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU) – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU) CPU+Chipset: – 8 x SATA 6Gb/s connectors |
| Networking | 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113C) 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Realtek) Qualcomm Wi-Fi 7 QCNCM865 |
| Audio | Realtek® ALC4080 CODEC |

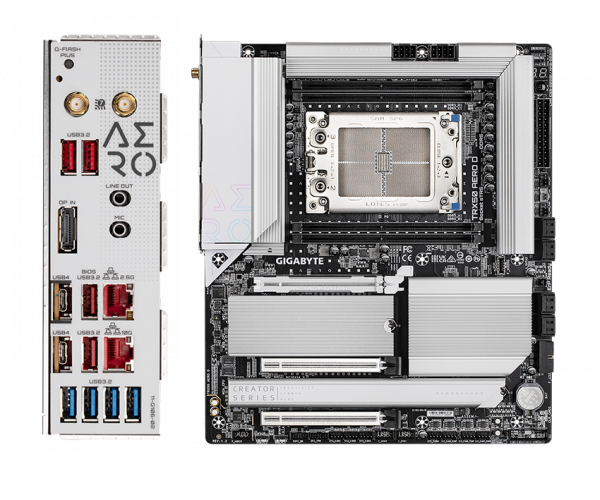

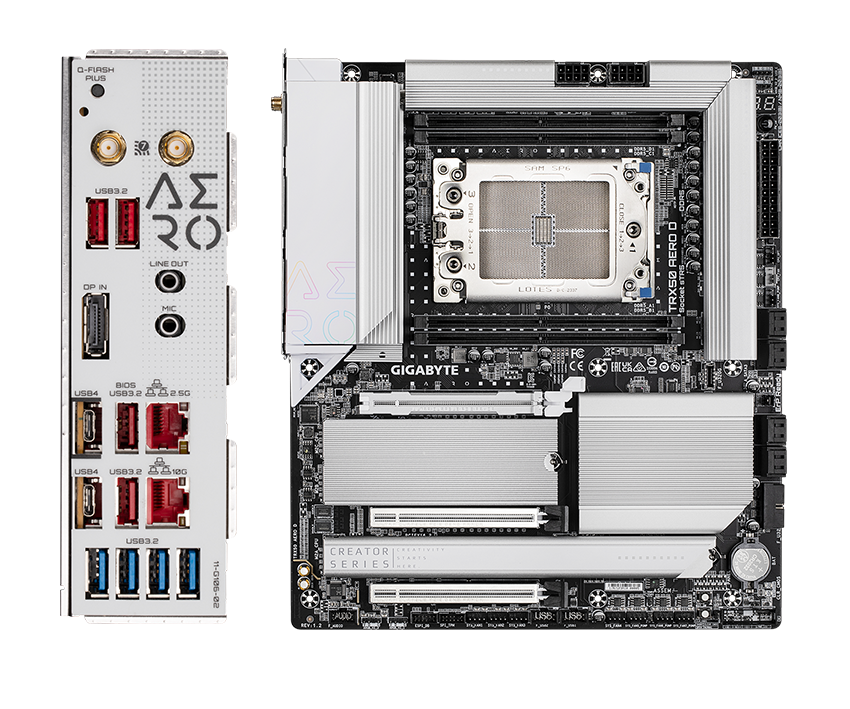

| Connectivity | 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort In port 1 x USB4® USB Type-C® port (DisplayPort) 1 x USB4® USB Type-C® port 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x RJ-45 ports 2 x audio jacks |
| Internal Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Clear CMOS button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper |
| Form Factor | E-ATX Form Factor; 30.5cm x 26.4cm |
| Warranty | Three Year Manufacturer Warranty |
