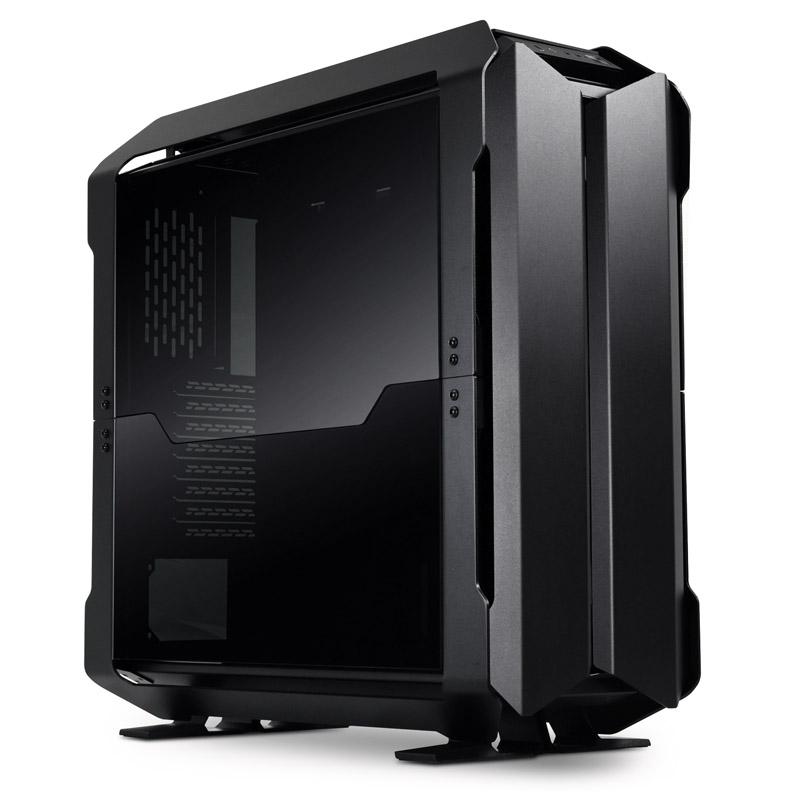

Lian Li Odyssey X Big Tower – Black

Original price was: £359.13.Current price is: £345.83.

Transformable PC, Three configurations, Designed with der8auer, Aluminium construction, Excellent airflow properties
SKU: CA-79F-LL Categories: , , Brand:

Description

The Lian Li Odyssey X is a premium large form factor case with the innovative capability of being ‘transformed’ into three different configurations: Dynamic, Dynamic-R (Rotate), and Performance.

The Lian Li Odyssey at a glance:

  • Unique transformable PC case with three configurations
  • Design collaboration with renowned der8auer
  • Solid Aluminium construction
  • Excellent airflow properties

The Lian Li Odyssey in detail:

Designed in collaboration with acclaimed overclocker der8auer, the Odyssey X is a high-quality PC case that can be configured in one of three ways to match your own preference. Dynamic is the default configuration, with Dynamic-R having the motherboard tray rotated to improve airflow to the GPU. Performance involves flipping the whole case 90 degrees to yet further enhance airflow, thereby offering superior heat dissipation. This flexibility gives users the freedom to build the PC they want.

As is characteristic of all Lian Li’s cases, the Odyssey is made from high-quality materials, including premium aluminium that has been anodised and sand-blasted to ensure the finest finish. Thanks to its modular structure, there is ample room for high-end components, which can be effectively displayed through an innovative double tinted tempered glass side panel.

In general, the Odyssey X has been optimised for airflow thanks to an open design. However, each configuration allows for a different number of fans or radiators to be attached.

Configuration Max Fans Max Radiators
Dynamic Top: 120mm x 3 / 140mm x 2
Front: 120mm x 3 / 140 x 2
Side: 120mm x 3 / 140 x 2
Front: 360mm + 240mm
Side: 360mm + 240mm
Dynamic-R Front: 120mm x 3 / 140mm x 2
Bottom: 120mm x 4 / 140mm x 3
Front: 360mm + 240mm
Bottom: 480mm + 420mm
Performance Top: 120mm x 3 / 140mm x 2
Front: 120mm x 4 / 140mm x 3
Front: 360mm + 280mm
Bottom: 480mm + 420mm

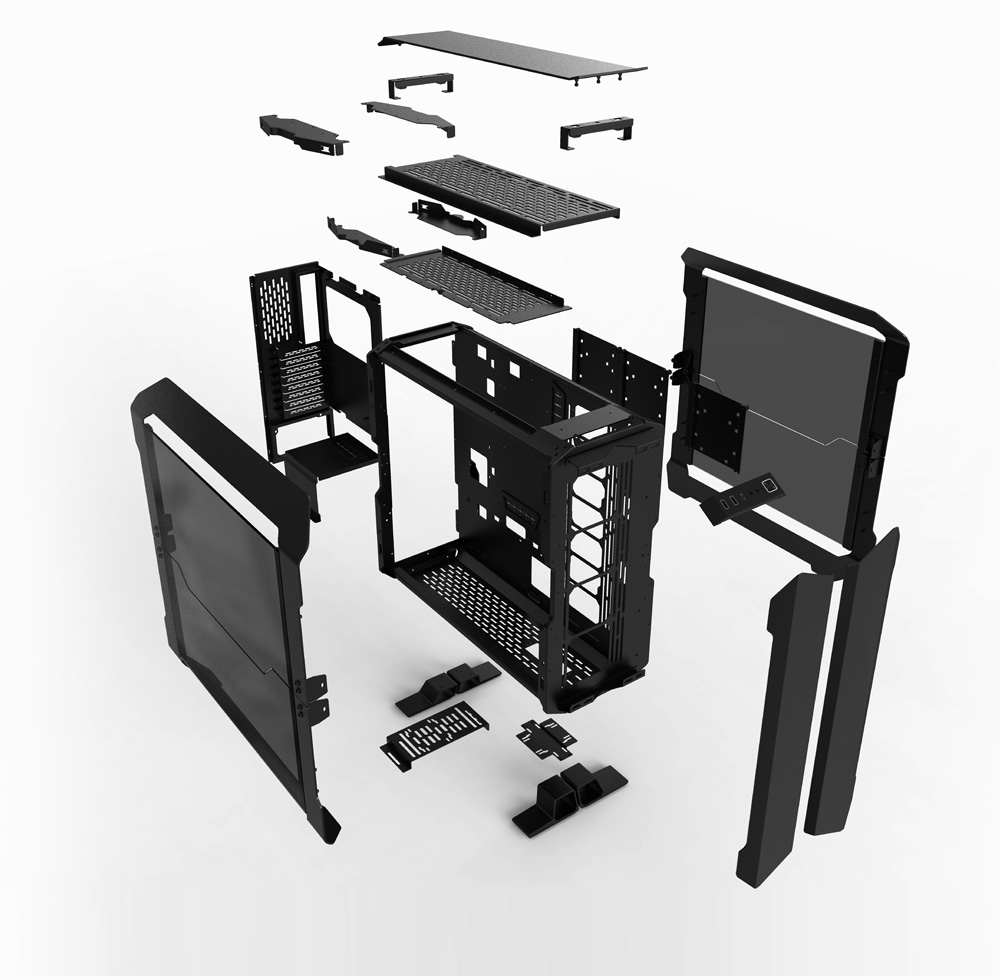

The Odyssey X’s modularity extends to the I/O panel, which can be moved depending on the configuration. There are extensive cable inlets, grommets, and Velcro ties for cable manage on the backplate. Additionally, up to three 3 x 2.5 or 3.5″ drives can be mounted there. All that and there is even capacity for a EBB motherboard!

Specification:

  • Dimensions:
    Dynamic / Dynamic-R (rotated): 234 x 558.5 x 575.5 mm (W x H x D)

    Performance:
    368.6 x 596.7 x 575.5 mm (W x H x D)

  • Materials: steel (frame), aluminium (panels), tempered glass (both sides)
  • Weight: 16.58kg
  • Colour: Black
  • Form factor: SSI-EEB / E-ATX / ATX, Micro-ATX / Mini-ITX
  • Total fans possible:
    Dynamic:
    3x 120mm / 2x 140mm (Front)
    3x 120mm / 2x 140mm (Top)
    3x 120mm / 2x 140mm (Side)

    Dynamic-R (rotated) 3x 120mm / 2x 140mm (Front)
    4x 120mm / 3x 140mm (Base)

    Performance:
    4x 120mm / 3x 140mm (Front)
    3x 120mm / 2x 140mm (Top)

  • Radiator-Mountings:
    Dynamic:
    1x 360 / 280mm (Front)
    1x 360 / 280mm (Side)

    Dynamic-R (rotated):
    1x 360 / 280mm (Front)
    1x 480 / 420mm (Base)

    Performance:
    1x 480 / 420mm (Front)
    1x 360 / 280mm (Top)

  • Dust filters: none
  • Drive bays:
    3x 3.5/2.5″ (internal)
  • PSU support: 1x ATX (optional)
  • Expansion slots: 8
  • I/O panel:
    1x USB 3.1 type-C (internal connector)
    2x USB 3.0 type-A (internal connector)
    1x 3.5 mm combo audio jack (4-pole, TRRS)
    Power button
  • Maximum VGA length: 423mm
  • Maximum CPU cooler height: 170mm
  • Maximum PSU length: 280mm
Drive Bays
2.5 / 3.5 inch internal drive bay (combined) 3
Hot swap drive bays No
Colour
Primary Colour Black
Dimensions
Length / Depth 575.5 mm
Width 368.6 mm
Height 596.7 mm
Weight 16.58 kg
Materials
Materials Aluminium, Steel, Tempered Glass
Case
Case Type Full Tower, Aluminium Case
Display
Display Included No
Radiator Support
Max. Radiator Compatibility 4x Dual (280 mm), 4x Triple (360 mm), 2x Quad (480 mm)
Motherboard Support
Max. Motherboard Format SSI-EEB
Compatible Motherboard Formats E-ATX, ATX, Micro-ATX, Mini-ITX, SSI-EEB
Additional Contents
Included fans no
Lighting
Lighting / RGB No
Fan / RGB control No
Case Features
I/O position Front
Side panel with window
Front door No
Cable Management No
Filters included No
Noise dampening No
Mainboard slide / tray No
Remote included No
Transport system No
Features
Housing feedthrough No
Expansion Slots
Expansion slots / PCI slots 8
Internal Dimensions
Max. CPU Cooler Height 170 mm
Max. GPU Length 423 mm
Max. PSU Length / Depth 280 mm
Power Supply
PSU Format ATX
Power Supply Position rear bottom
External Ports
USB 3.1 (external) Type C 1
USB 3.0 (external) Type A 2
Audio outputs & inputs 1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Card reader No
Fan Support
120 mm fans 23
140 mm fans 16

Additional information

Weight 18 kg
