Description
Capture your streaming audio and visual footage in stunning 4K resolution, with the Streamplify CAPTURE 4K Capture Card. As pass-through or recorded, this capture card operates with ultra-low latency for seamless synchronisation of your audio and video. What’s more, it is extensively compatible with devices, consoles, and applications for easy integration within your streaming set-up.
Streamplify CAPTURE 4K Capture Card at a Glance:
- USB video and audio capture card for PC and consoles
- Pass-through video up to 4K at 60Hz
- Record footage up to 4K at 30Hz
- Supports HDR and VRR in pass-through mode
- Ultra-low latency for excellent video/audio syncing
- Extensive app support, including OBS, Twitch, and YouTube
4K Resolutions

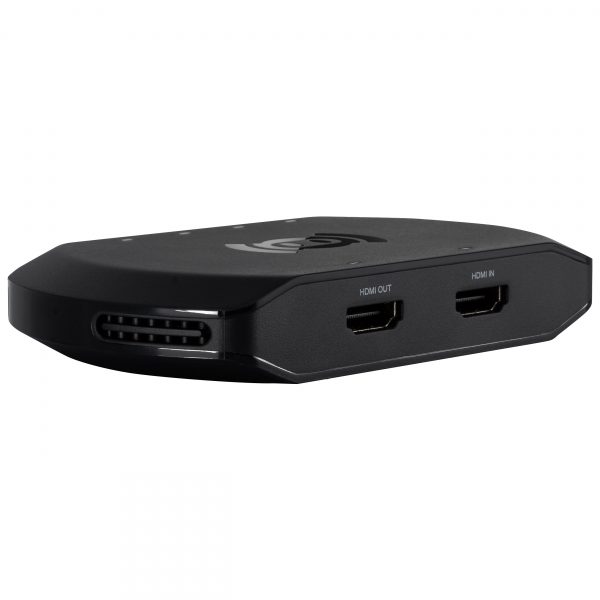

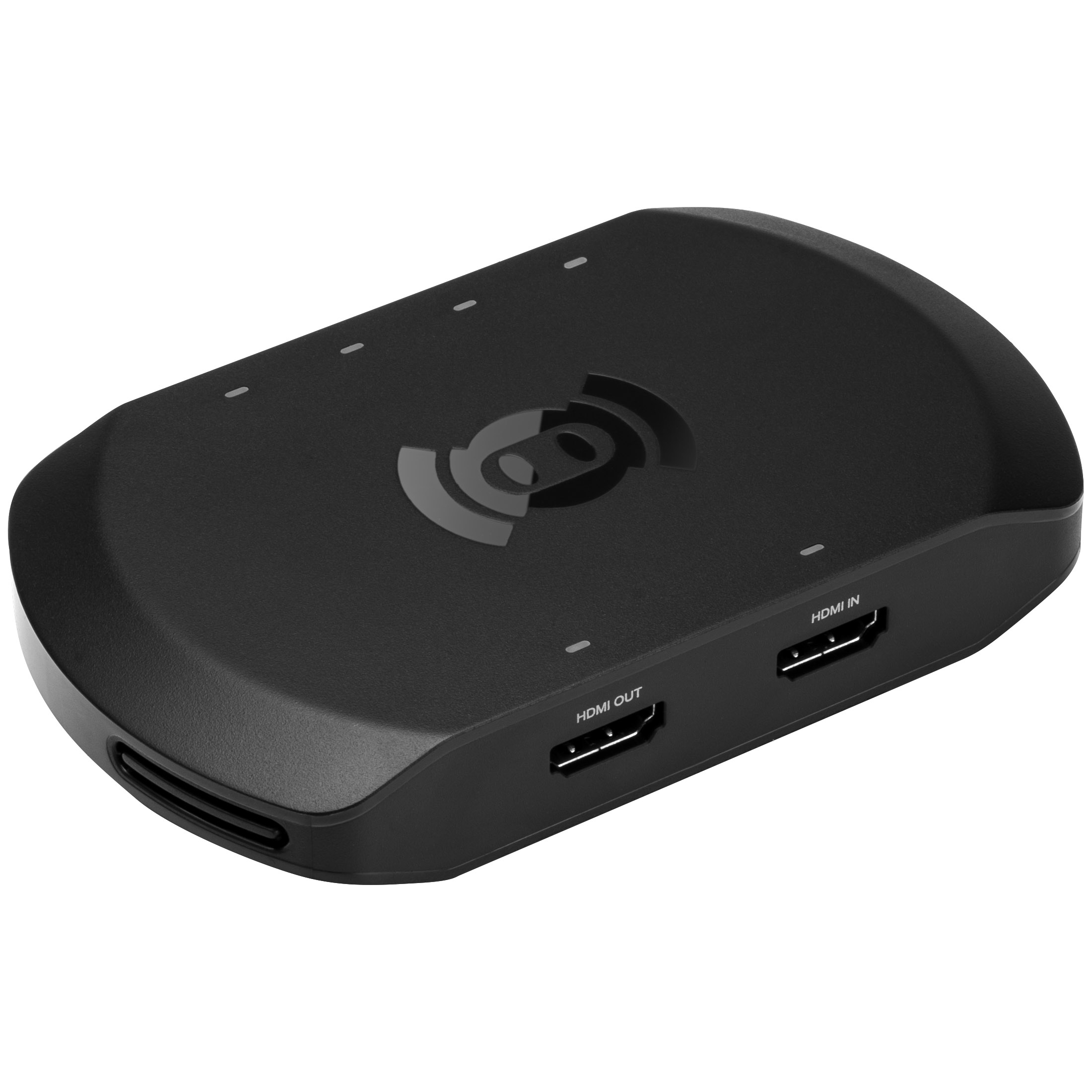

The Streamplify CAPTURE 4K Capture Card is engineered to capture your streaming audio and video in high-quality, using NV12, YUY2, or XRGB files. It can be used either as a pass-through device or to actively record footage, at up to 4K. In pass-through, gaming features such as High Dynamic Range (HDR) and Variable Refresh Rate (VRR) are supported, while both modes use HDCP 2.2. Maximising compatibility, both an HDMI 2.0 and USB-C cable are included within the scope of delivery.
Here are the maximum resolution and refresh rates for pass-through and recording:
Pass-Through
- 4K @ 60Hz
- 2560 x 1440 @ 60Hz
- 1920 x 1080 @ 120Hz
- 1080p @ 60Hz
- 720p @ 60Hz
- 480p @ 60Hz
Recording
- 4K @ 30Hz
- 2560 x 1440 @ 60Hz
- 1080p @ 120Hz
- 1080p @ 60Hz
- 720p @ 60Hz
- 480p @ 60Hz
High Fidelity Audio
The Streamplify CAPTURE 4K has a PCM2.0 capture format for audio, with a high sampling rate of 48kHz (24bit). As a result, your audio is impeccably streamed or recorded in incredible quality, with a low latency of 100ms to optimise the audio/visual sync. Only the best for your stream!

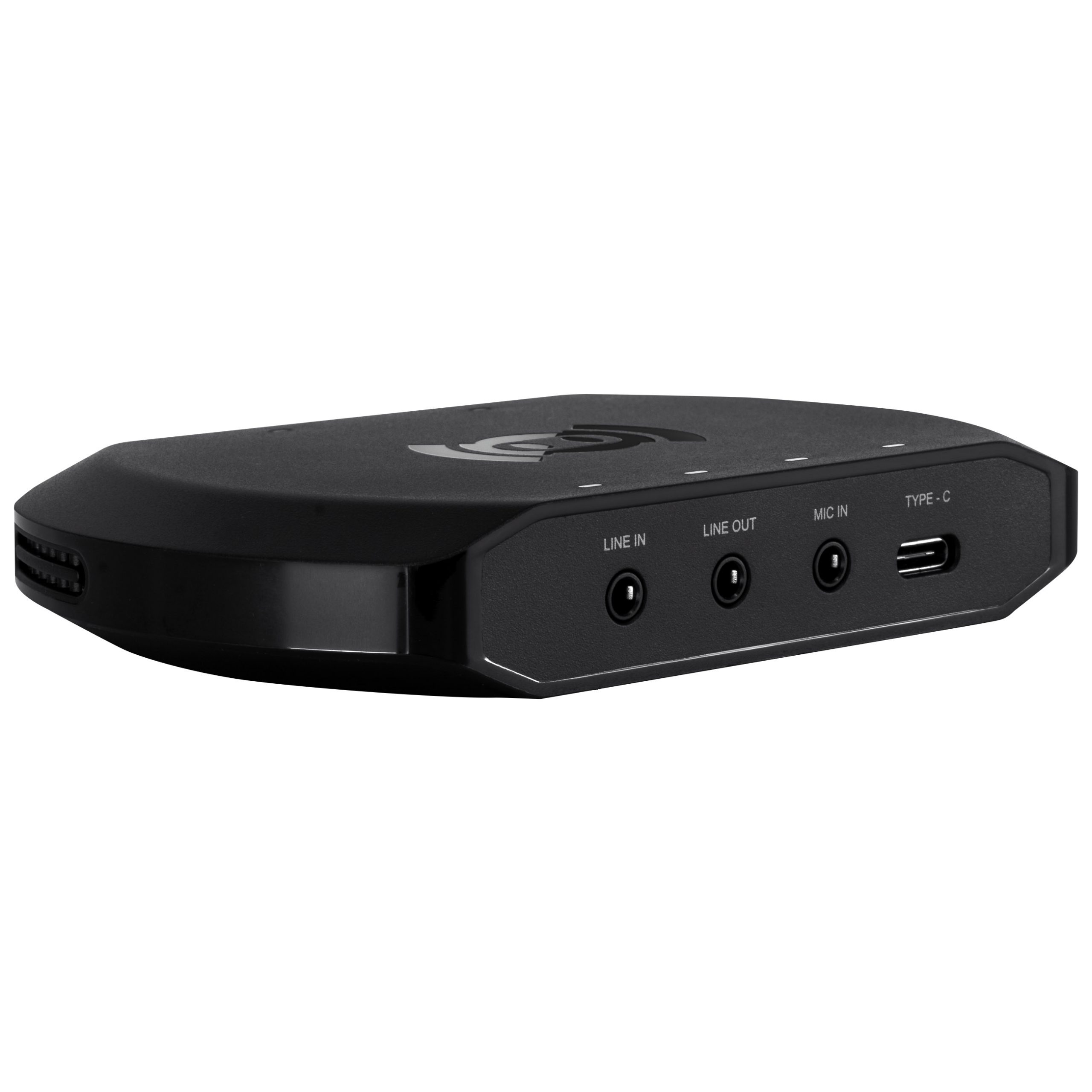

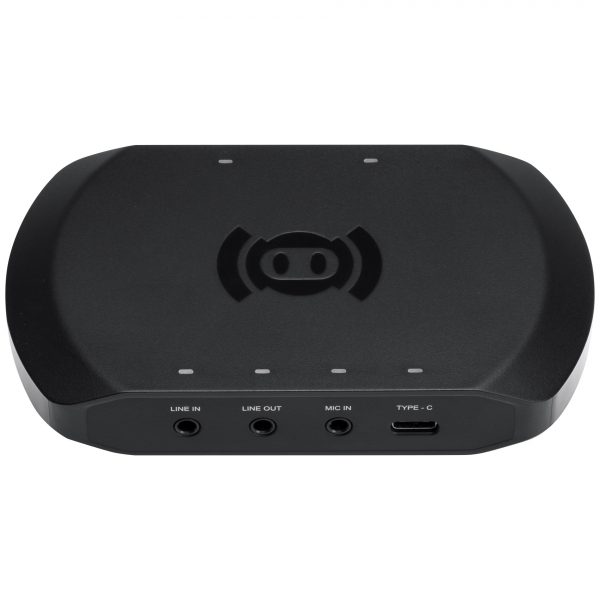

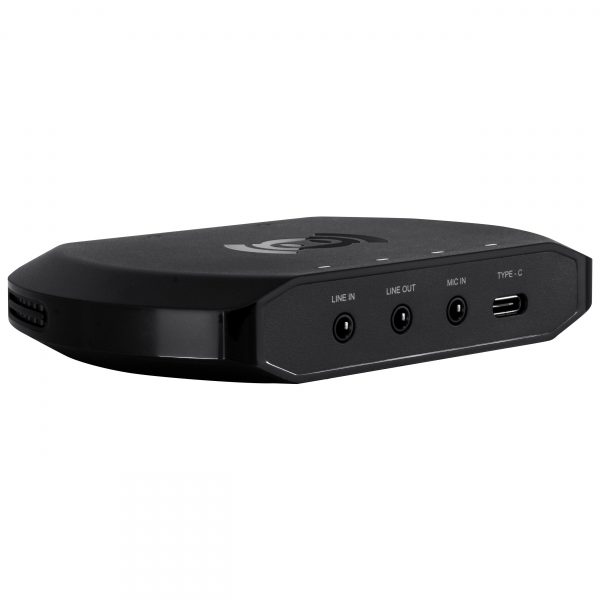

There are three 4-pole 3.5mm audio jacks on the capture card’s main body. These are for line in support, audio out, and microphone in, so you can do mic-in commentary.
Extensive Compatibility
The Streamplify CAPTURE 4K can be used with a myriad of devices and applications. It is designed to work with multiple platforms, making it easier for you to stream console footage via your gaming PC. Console support includes Xbox, PlayStation 4, PS5, and Nintendo Switch. You can even stream from your smartphone!
What’s more, the Streamplify CAPTURE 4K is compliant with multiple applications, such as OBS, Twitch, YouTube, XSplit, vMix, Zoom, and Skype. This versatile capture card will be an asset to any streaming set-up!
Required Specification
For the Streamplify CAPTURE 4K Capture Card to work with your PC system, you need to have the following hardware:
- Windows 10 or later
- Intel Core i5 CPU or similar
- NVIDIA GeForce GTX 1060 GPU or later
- 8GB RAM
- A free USB 3.0 port
Compatibility
The Streamplify CAPTURE 4K is compatible with a wide range of devices.
It works best with all current-gen consoles, including Xbox Series X and PlayStation 5. The capture card is also compatible with Windows and MAC OS based computers. Please note, some older HDMI cables may struggle to send full 4K video to the capture card.
The Streamplify CAPTURE 4K requires a clean source signal to function correctly. Some cameras may need to be adjusted. We would recommend referring to the camera’s manual or contacting the manufacturer to confirm compatibility before buying.
For more information, check out the Streamplify CAPTURE 4K FAQ (external link).
