Description
The most affordable 80Plus Gold power supply unit that delivers high efficiency and stable power output with minimum noise. Now with optimized fan speed curve and fully modular soft black cables for better cable management.
INTEGRATOR GOLD AT A GLANCE
- Compatible with all intel form factors up to ATX12V Ver 3.0
- All premium Japanese branding capacitors
- 120mm silent black fan with optimized thermal fan speed control, plus 0RPM mode operation in low load
- Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability
- Four PCIe 6+2pin connectors for high-end graphics card
- Certified by CE and UKCA for safe operation
INTEGRATOR GOLD SPECIFICATION
PCIe 6+2 exposed(500mm) + PCIe 6+2P (150mm) x2
| AC Input | 100-240Vac 11-5.5A 47-63Hz |
| Dc Output Voltage | +3.3V +5V +12V – 12V +5Vsb |
| Max Output Current | 20A 20A 70.5A 0.3A 3A |
| Max Combined Power | 130W 846W 3.6W 15W |

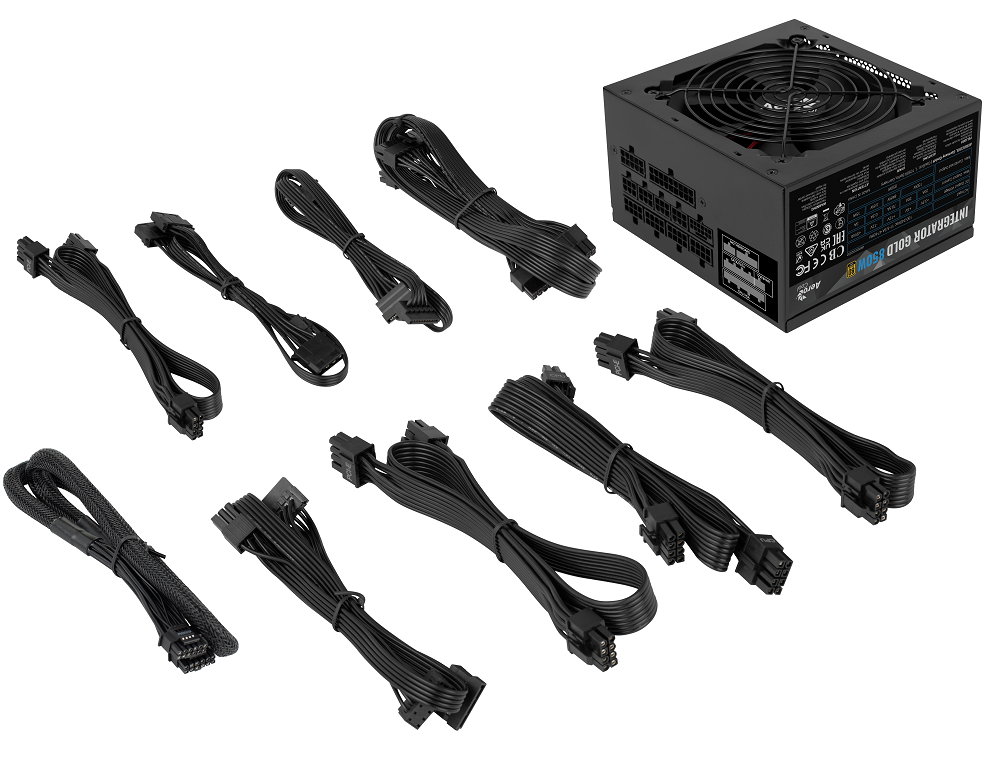

| Cable Configurations | 20+4pin exposed (550mm) x1 12V 4+4 pin exposed (600mm) + 4+4pin (150mm) x1 Sata exposed (500mm)+sata(150mm)+sata(150mm) x2 Pata exposed (500mm)+pata(150mm)+pata(150mm) x1 |
Specifications
| Efficiency Class | |
| 80PLUS efficiency | 80 PLUS Gold |
| Fan Specifications | |
| Fan Size | 120 mm |
| Colour | |
| Primary Colour | Black |
| Internal Ports | |
| 6+2 pin PCIe power connectors | 4 |
| SATA power connectors | 6 |
| Power Specifications | |
| Total power output | 850 W |
| Power Supply | |
| Modular type | fully modular |
