Description

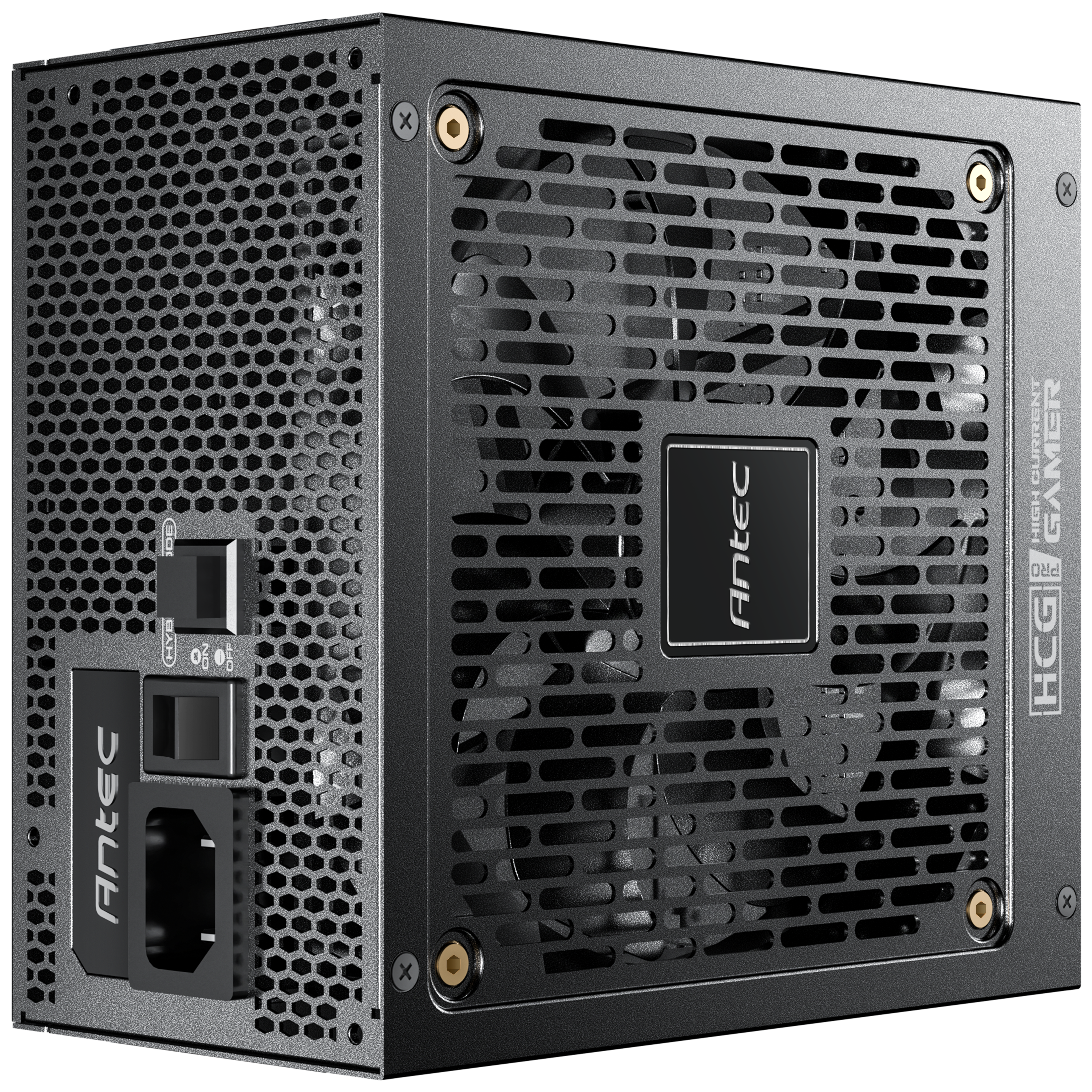

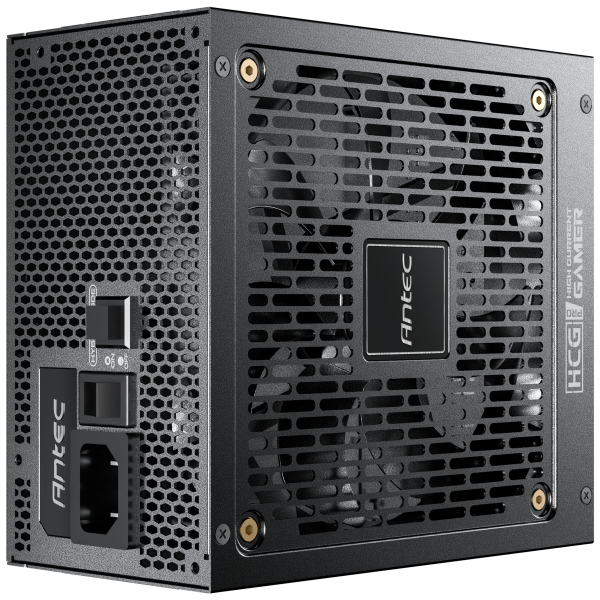

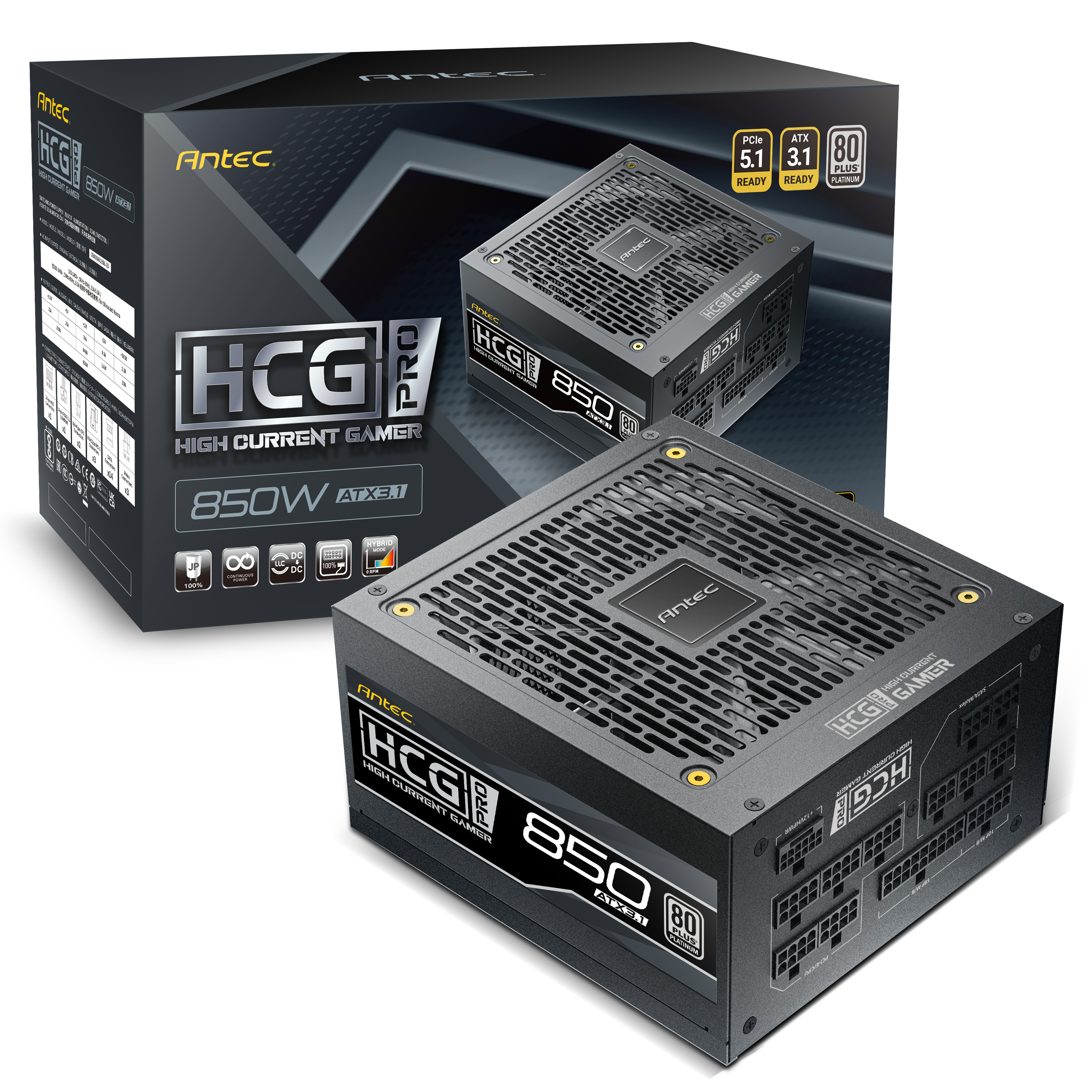

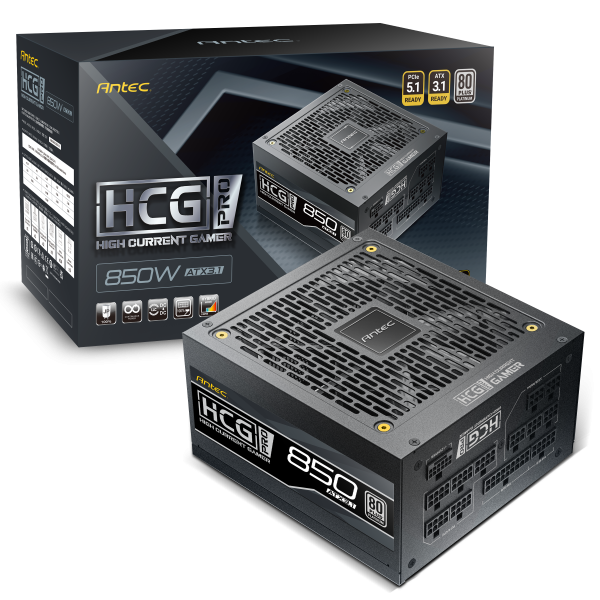

Presenting the High Current Gamer PRO Platinum ATX3.1 power supplies, designed with the ultimate quality and stability in mind for gamers and enthusiasts. With the ground-breaking features like ATX 3.1, PCIe 5.1, 100% high-quality JP capacitors, 80 PLUS® Platinum-certified efficiencies and other more, you can expect second-to-none performance from your system. The PhaseWave™ Design ensures steady power output, while the 135mm FDB Silence Fan offers quiet cooling. The power supply is also 100% Modular, allowing for easy cable management and customization. The Zero RPM Manager enables advanced thermal control, ensuring the optimal balance between silent operation and efficient cooling. The CircuitShield™ full suite of industrial-grade protections provides safe and reliable power delivery under any circumstances. HCG850 PRO Platinum ATX3.1 is the perfect choice for your cutting-edge PC system.
HCG850 PRO Platinum ATX 3.1 at a Glance
- ATX 3.1 & PCIe 5.1 Compatible
- 100% High-Quality JP Capacitors
- PhaseWave Design
- CircuitShield
- 135mm FDB Silent Fan
- 10-Year Warranty
HCG850 PRO Platinum ATX 3.1 Specification
| Model | HCG850 PRO Platinum ATX3.1 |
|---|---|
| Type | ATX 12V 3.1 |
| Dimension (LWH) | 160(L) x 150(W) x 86(H) mm |
| Modular | Full-Modular |
| Warranty | 10 years |
| Input Voltage | 100V-240V |
| Input Current | 11A-5.5A |
| Input Frequency Range | 60Hz-50Hz |
| PFC | Active PFC |
| Power Good Signal | 100-150ms |
| Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Output Capacity | 850W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES / CCC |
| Fan | 135mm FDB Silent Fan |
| Certifications | 80 Plus Platinum |
| Connector | 1 x 24(20+4)pin MB 1 x 16(12+4)pin PCIE 5.1 12VHPWR 2 x 8(4+4)pin CPU 3 x 8(6+2)pin PCI-E 14 x SATA 3 x Molex |
| Unit Box Dimensions | 336mm x 198mm x 133mm |
| Shipping Box Dimensions | 600mm x 200mm x 375mm |
| Net Weight | 3.33kg |
| Gross Weight | 3.91kg |
