Description
CORSAIR HXi Series Fully Modular Ultra-Low Noise Power Supplies deliver exceptional 80 PLUS Platinum efficient power and low-noise fluid dynamic bearing fan performance. ATX 3.0 and PCIe 5.0 compliance, HXi PSUs have every connection needed to power today’s most demanding PC upgrades. Powerful CORSAIR iCUE software enables custom fan curves, monitoring and adjusting power settings, and more thanks to a fully digital platform. Japanese 105°C-rated electrolytic capacitors deliver long life and reliability, backed by a ten-year warranty. Wake your computer faster and consume less power with Modern Standby sleep mode. Zero RPM mode ensures near-silent operation at low and medium loads. The HXi Series puts platinum power at your command.
HXi Series at a Glance

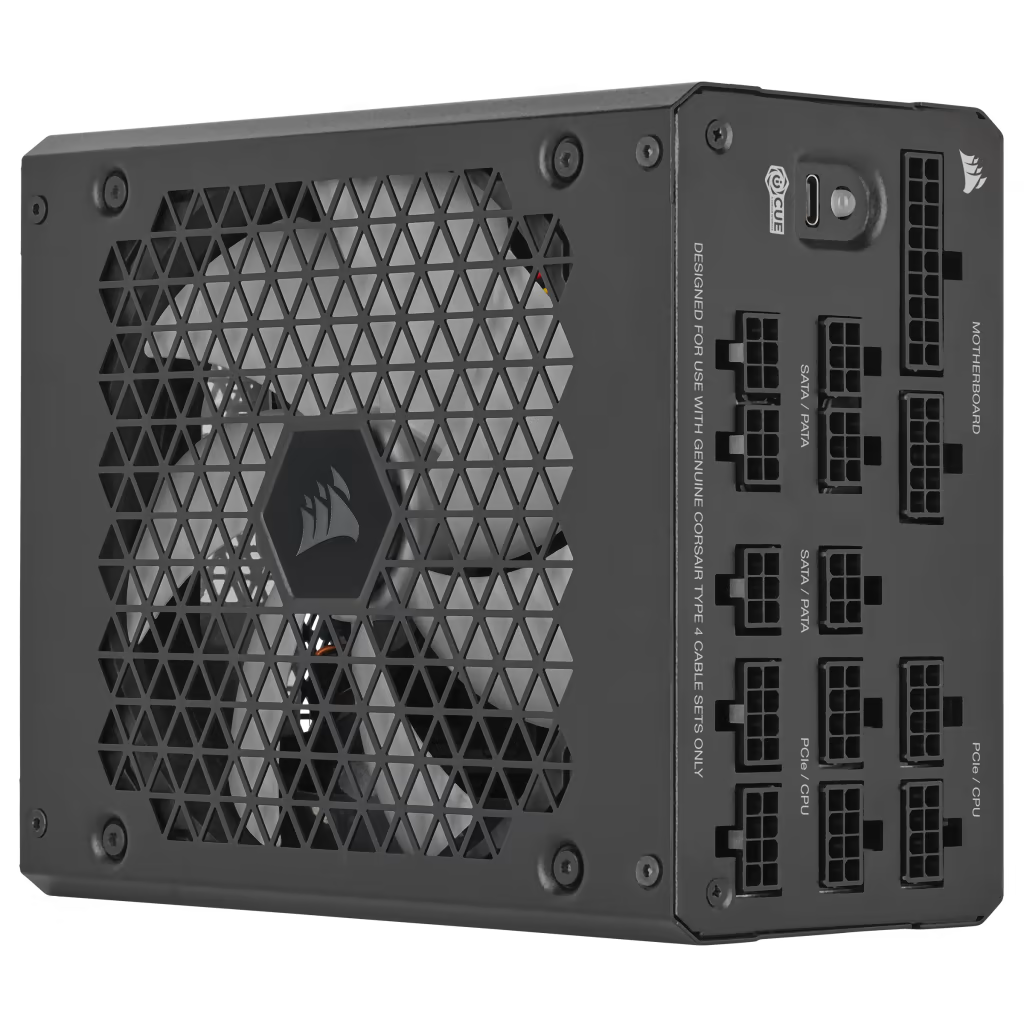

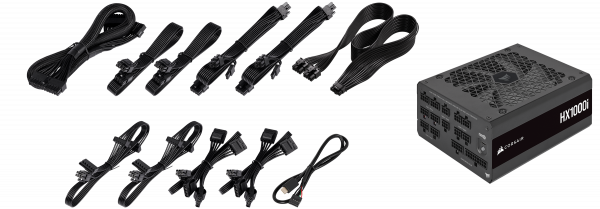

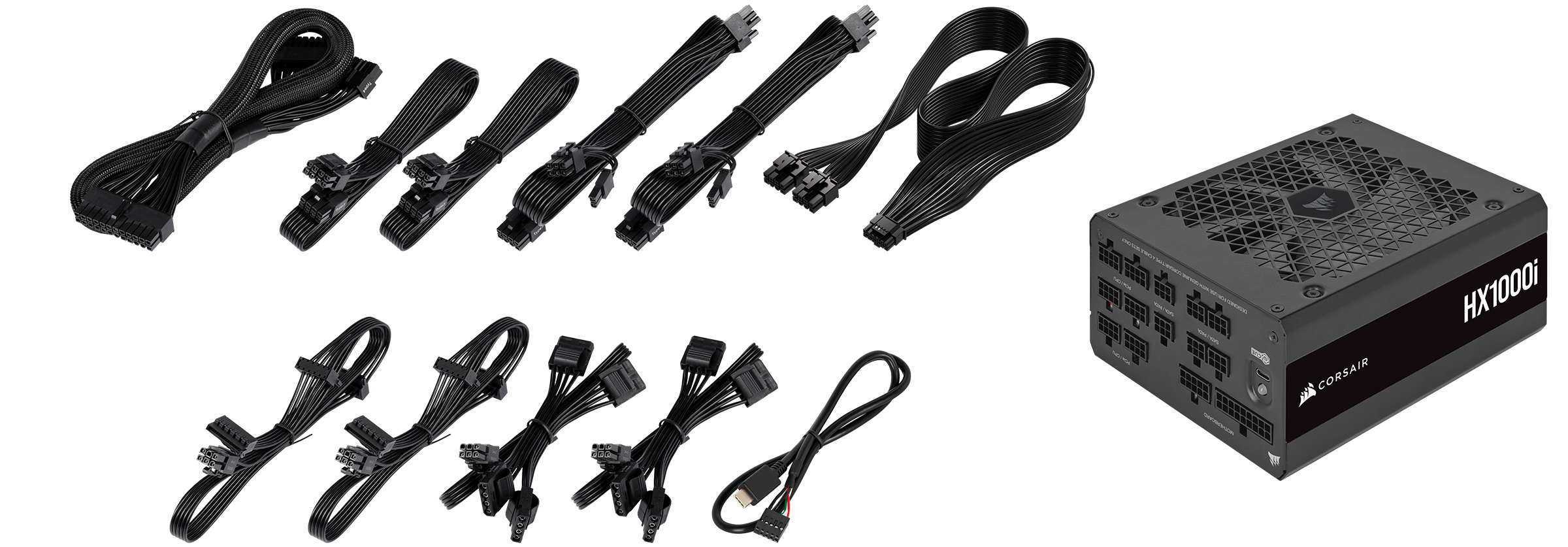

- Fully modular cabling, so you connect only the cables your system needs.
- Compliant with the ATX 3.0 power standard from Intel®, supporting the PCIe Gen 5 platform and resisting transient power spikes.
- A 140mm fluid dynamic bearing (FDB) fan delivers extremely quiet and long-lasting fan performance.
- Powerful CORSAIR iCUE software enables you to create custom fan curves, monitor power settings, and toggle between single to multi-rail overcurrent protection (OCP) on-the-fly.
- Zero RPM fan mode for near-silent operation at low to medium loads.
- 100% Industrial-grade, 105°C rated Japanese electrolytic capacitors ensure unwavering power and reliability.
HXi Series Specification
Form Factor | ATX 3.0 |
---|---|
Edition | HX1000i |
Wattage | 1000 W |
80 PLUS Certification | 80 PLUS Platinum |
Max. Efficiency (at 230Vac) | 92 % |
Cooling | Fan |
Fans | 1 x 140mm |
Internal +12V Rails | Single Rail |
Rail 1 +12V | 83.3 A |
Rail 2 +12V | N/A |
Rail 3 +12V | N/A |
Rail 4 +12V | N/A |
Rail 5 +12V | N/A |
Rail 6 +12V | N/A |
Max. Combined Output +12V | 83.3 A |
Modular | Yes |
Modularity | Full Modular |
SLI/CrossFire | Yes |
EPS 12V | Yes |
Motherboard Connector | 24-pin |

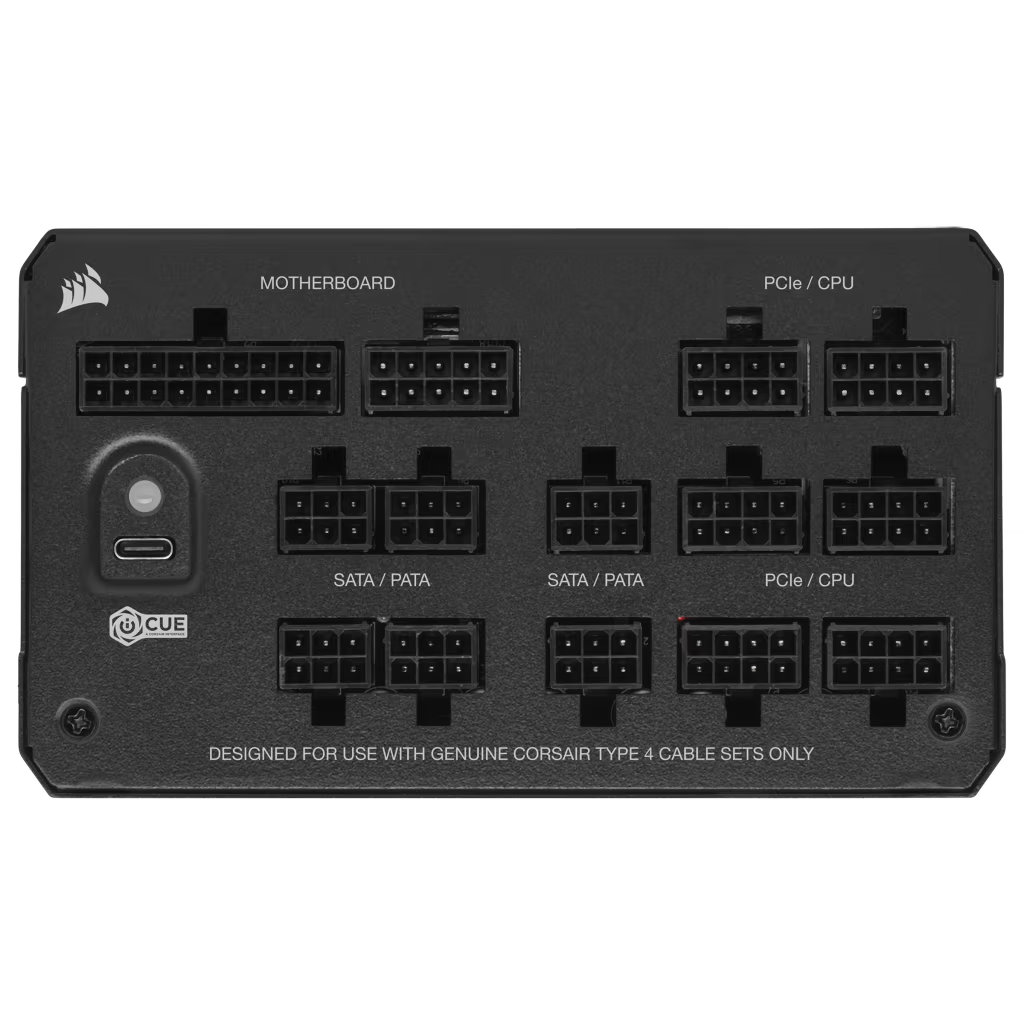

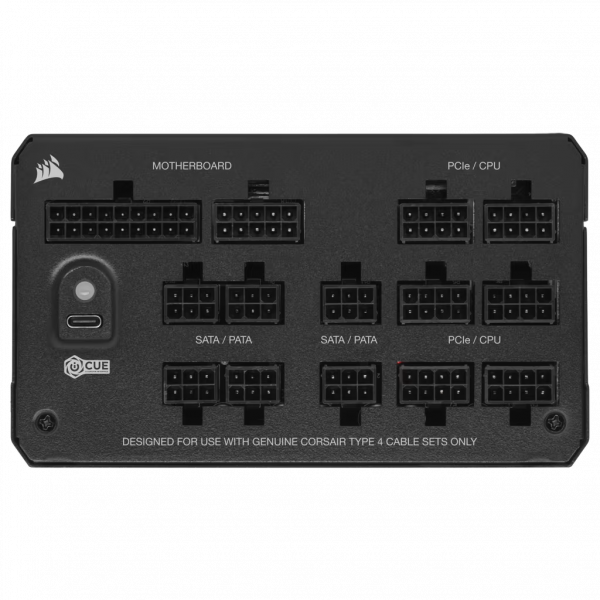

Connectors | 1 x 16-pin PCIe 2 x 4+4-pin CPU +12V (EPS) 8 x 4-pin Molex 4 x 6+2-pin PCIe 8 x SATA 1 x USB Type-C |
Dimensions | 150 x 86 x 180 (WxHxD) |
