Description
Discover the Seasonic VERTEX PX Series—a pinnacle in power supply technology. Offering 750/850/1000/1200W Platinum efficiency, this unit is meticulously engineered for top-tier performance, reliability, and superior features, delivering unparalleled power to elevate your PC experience.
VERTEX PX at a Glance
- Advanced Compatibility: Fully align with ATX 3.0 and PCIe 5.0 standards for enhanced system performance.

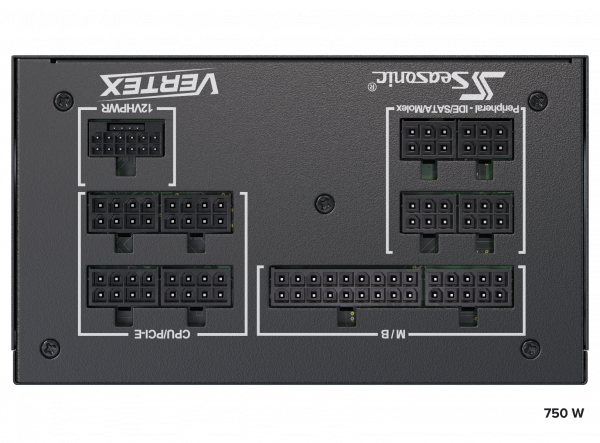

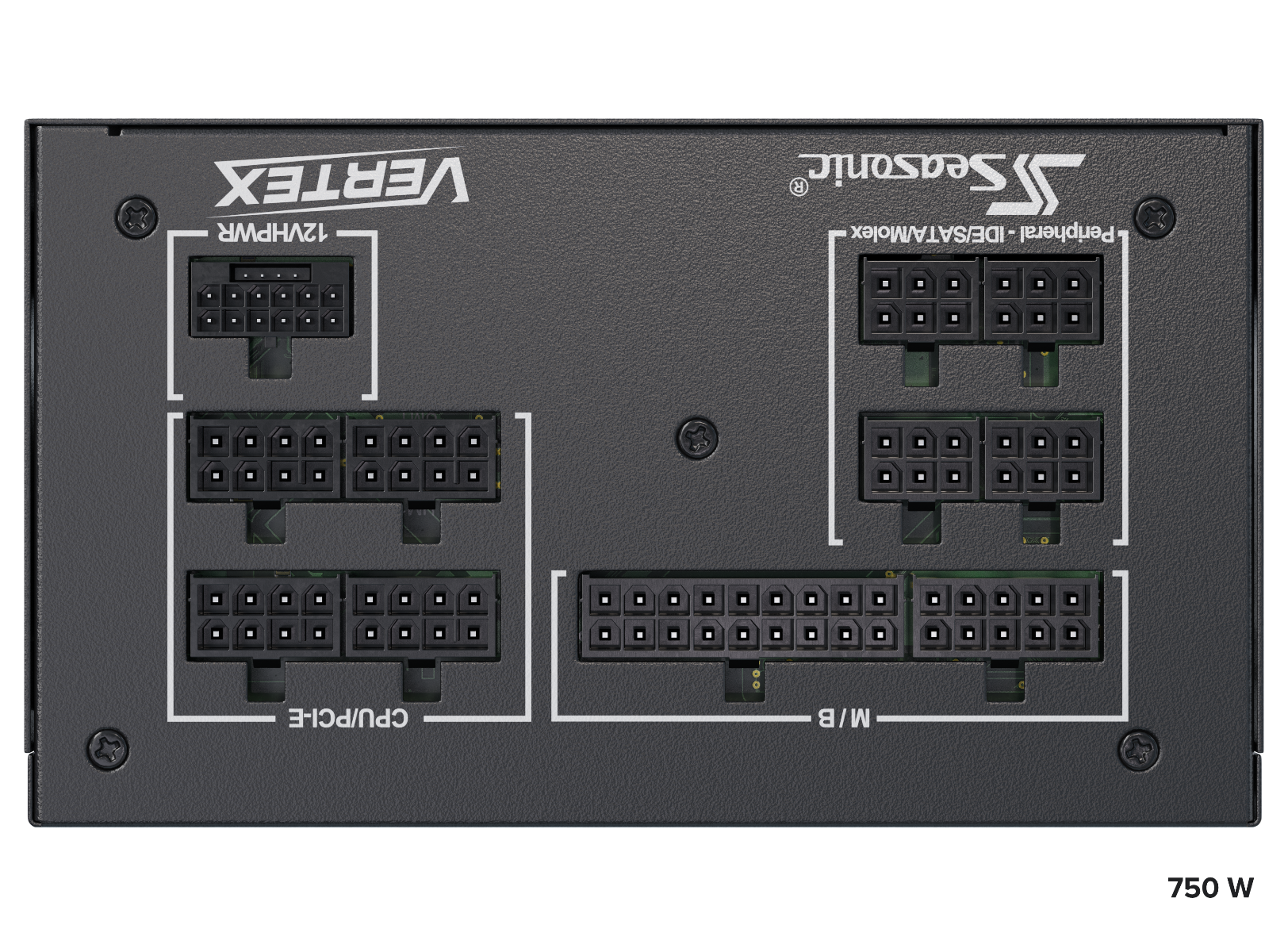

- Optimized Cable Management: Enjoy superior cable organization with full modularity, ensuring the best cable management options.
- Graphic Card Support: Features an added 12VHPWR cable, ensuring compliance with new graphic card specifications.

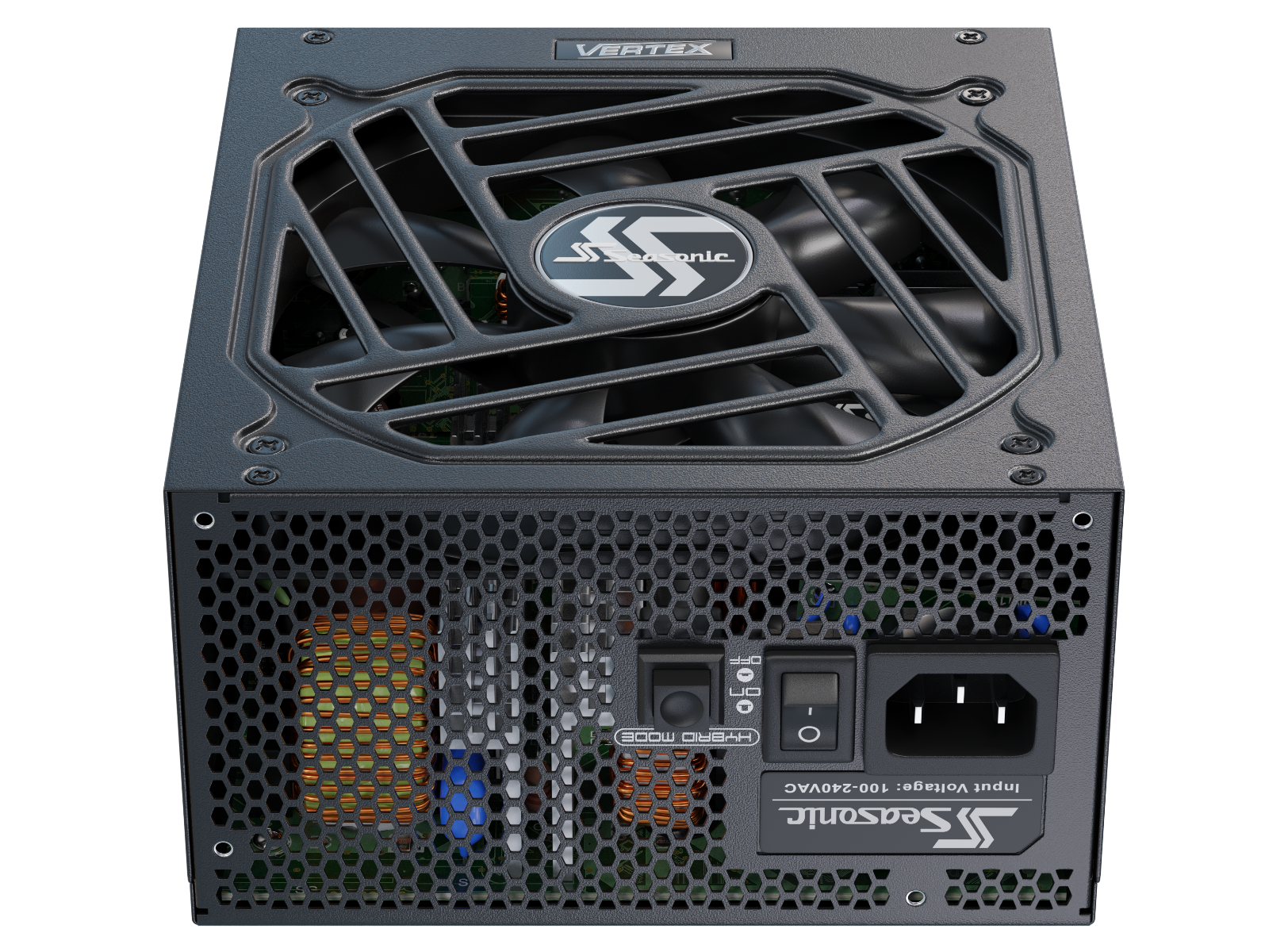

- Whisper-Quiet Operation: Equipped with a 135mm Fluid Dynamic Bearing (FDB) fan, delivering quiet operation for an enhanced user experience.
- Efficient Cooling Control: Utilize Seasonic Hybrid Silent Fan Control for optimal cooling, maintaining a perfect balance between performance and noise levels.
- Comprehensive Protection: Benefit from complete protection features, including OPP, OVP, UVP, SCP, OCP, and OTP, ensuring the safety of your components.
VERTEX PX Specification
| 80PLUS® | Platinum |
| Cybenetics Efficiency Level | TBA |
| Cybenetics Noise Level | TBA |
| Form Factor | Intel ATX 12 V |
| Dimensions | 160 mm (L) x 150 mm (W) x 86 mm (H) |
| Fan Information | Fan Size: 135 mm Fan Control: Premium Hybrid Fan Control Fan Bearing: Fluid Dynamic Bearing Life Expectancy: 50,000 hours at 40 °C, 15% – 65% RH |
| Cable Information | Modularity: Fully Modular Cable type: Flat black cables |
| Electrical Features | Operating Temperature: 0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C) MTBF @ 25 °C, excl. fan: 100,000 hours AC Input: Full Range Protection: OPP, OVP, UVP, OCP, OTP, SCP |
| Safety and Environmental | Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 12 Years |
| Power Output | AC Input: Voltage: 100 V – 240 V Current: 10 – 5 A Frequency: 50 Hz – 60 Hz DC Output: |
