Description
Discover the Seasonic VERTEX PX Series—a pinnacle in power supply technology. Offering 750/850/1000/1200W Platinum efficiency, this unit is meticulously engineered for top-tier performance, reliability, and superior features, delivering unparalleled power to elevate your PC experience.
VERTEX PX at a Glance
- Advanced Compatibility: Fully align with ATX 3.0 and PCIe 5.0 standards for enhanced system performance.
- Optimized Cable Management: Enjoy superior cable organization with full modularity, ensuring the best cable management options.
- Graphic Card Support: Features an added 12VHPWR cable, ensuring compliance with new graphic card specifications.

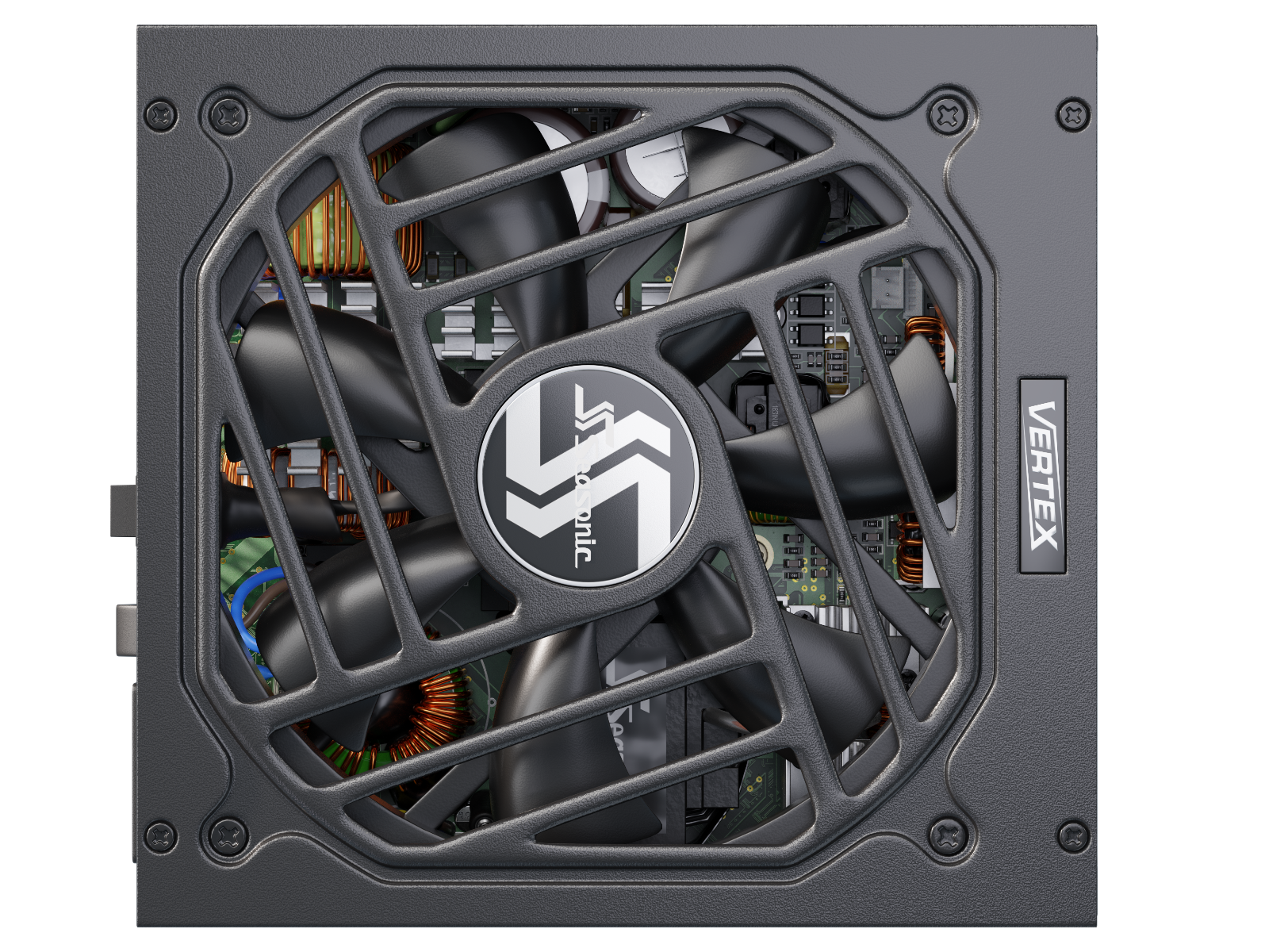

- Whisper-Quiet Operation: Equipped with a 135mm Fluid Dynamic Bearing (FDB) fan, delivering quiet operation for an enhanced user experience.
- Efficient Cooling Control: Utilize Seasonic Hybrid Silent Fan Control for optimal cooling, maintaining a perfect balance between performance and noise levels.
- Comprehensive Protection: Benefit from complete protection features, including OPP, OVP, UVP, SCP, OCP, and OTP, ensuring the safety of your components.
VERTEX PX Specification
| 80PLUS® | Platinum |
| Cybenetics Efficiency Level | TBA |
| Cybenetics Noise Level | TBA |
| Form Factor | Intel ATX 12 V |
| Dimensions | 160 mm (L) x 150 mm (W) x 86 mm (H) |
| Fan Information | Fan Size: 135 mm Fan Control: Digital Fan Control Fan Bearing: Fluid Dynamic Bearing Life Expectancy: 50,000 hours at 40 °C, 15% – 65% RH |
| Cable Information | Modularity: Fully Modular Cable type: Flat black cables |
| Electrical Features | Operating Temperature: 0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C) MTBF @ 25 °C, excl. fan: 100,000 hours AC Input: Full Range Protection: OPP, OVP, UVP, OCP, OTP, SCP |
| Safety and Environmental | Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 12 Years |
| Power Output | AC Input: Voltage: 100 V – 240 V Current: 11 – 5.5 A Frequency: 50 Hz – 60 Hz DC Output: |
| Fan Specifications | |
| Fan Size | 135 mm |
| Dimensions | |
| Length / Depth | 160 mm |
| Width | 150 mm |
| Height | 86 mm |
| Installation depth | 16 cm |
| Efficiency Class | |
| 80PLUS Efficiency | 80 PLUS Platinum |
| Lighting | |
| Lighting / RGB | No |
| Power Specifications | |
| Total Power Output | 850 W |
| Power Output +12V rails | 840 W |
| Colour | |
| Primary Colour | Black |
| Power Supply | |
| PSU Format | ATX |
| 12V Distribution | single rail |
| Modular Power Supply | Yes |
| Modular Type | fully modular |
| Cooling | |
| Semi Passive Power Supply | Yes |
| Semi Passive Type | passive |
| Case Fan Controller | Yes |
| Internal Ports | |
| CPU Power Supply | 2x 4+4-Pin |
| 12VHPWR PCIe Power Connectors | 1 |
| 6+2 Pin PCIe Power Connectors | 3 |
| SATA Power Connectors | 18 |
| 4 Pin Molex Power Connectors | 3 |
| Software interface digital | No |
